TURBO DODGE SHELBY GLHS
VACUUM AND WIRING DIAGRAMS

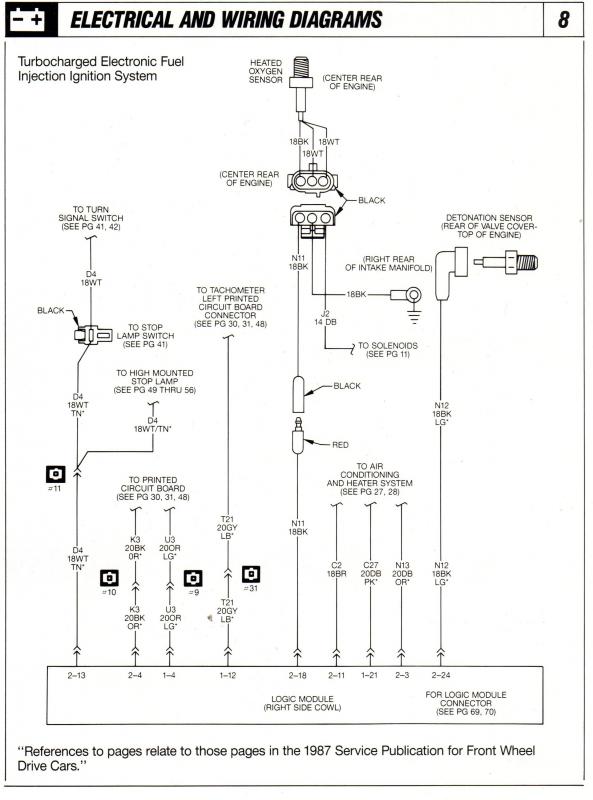

1986 Shelby GLHS Wiring and Vacuum Diagrams

These are the original engine electrical and vacuum diagrams for the 1986 Shelby GLHS Omni. These come from the Shelby Dealer Service Manual. Images are fairly large to preserve the quality and readability of the images.

Seven(7) images total (See all attachments)
