Dodge Turbo IV Vacuum Diagram

Dodge Turbo IV Vacuum Diagram

Posted by Steven Seale on Mar 19th 2023

NEW FAQ PUBLISHED

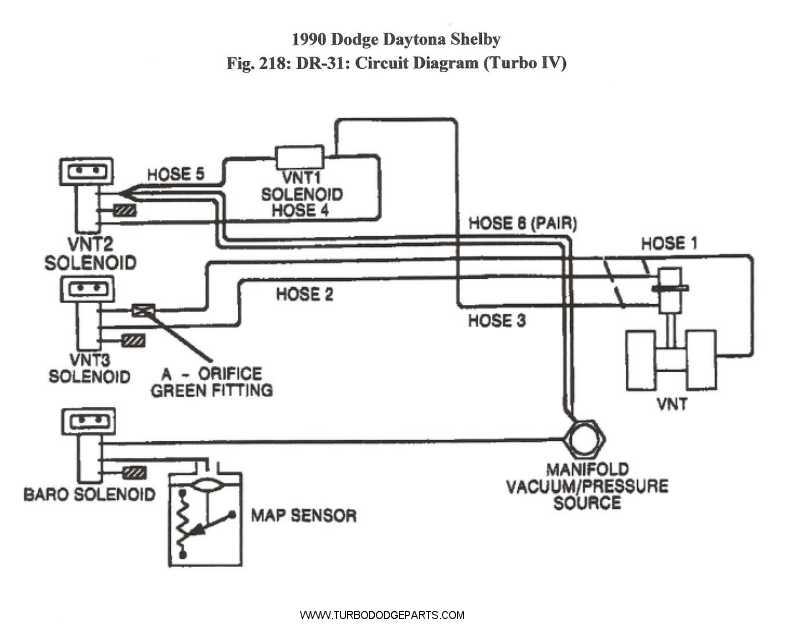

1989/1990 Dodge/Chrysler VNT Turbo IV Vacuum Routing Diagram

Ever have to check or rework your Turbo IV/VNT turbo vacuum and boost harness and couldn't find a good resource diagram to use for routing and diagnostics.  Well yeah, we had the same problem so we took what was available online and cleaned it up to make it much more readable.  Access it here:

https://turbododgeparts.com/content/faqs/Dodge-CSX-Turbo-IV-VNT-Vacuum-Diagram.html
