Product Description
*** RESERVED FOR CASON-TEXAS ***

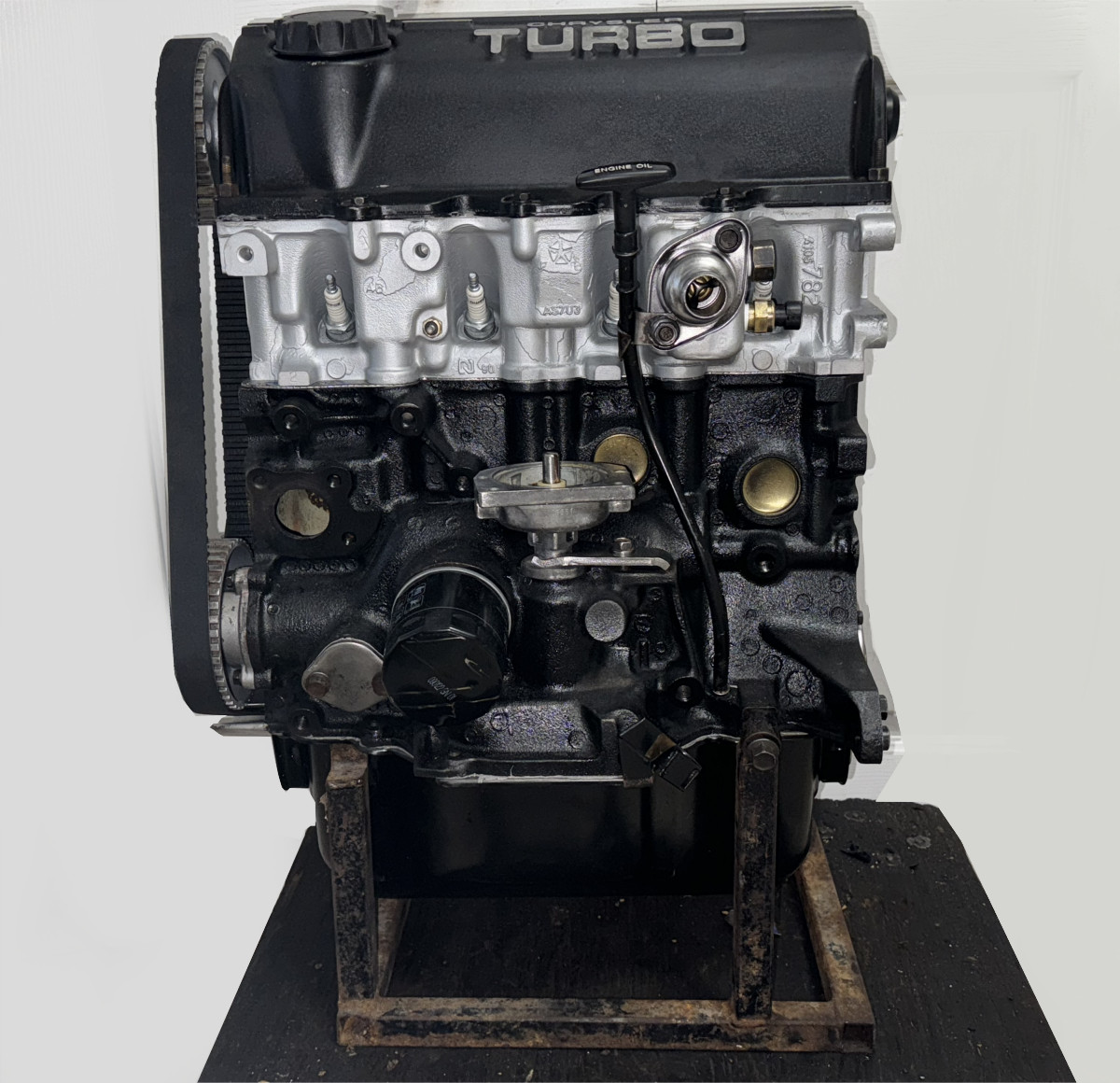

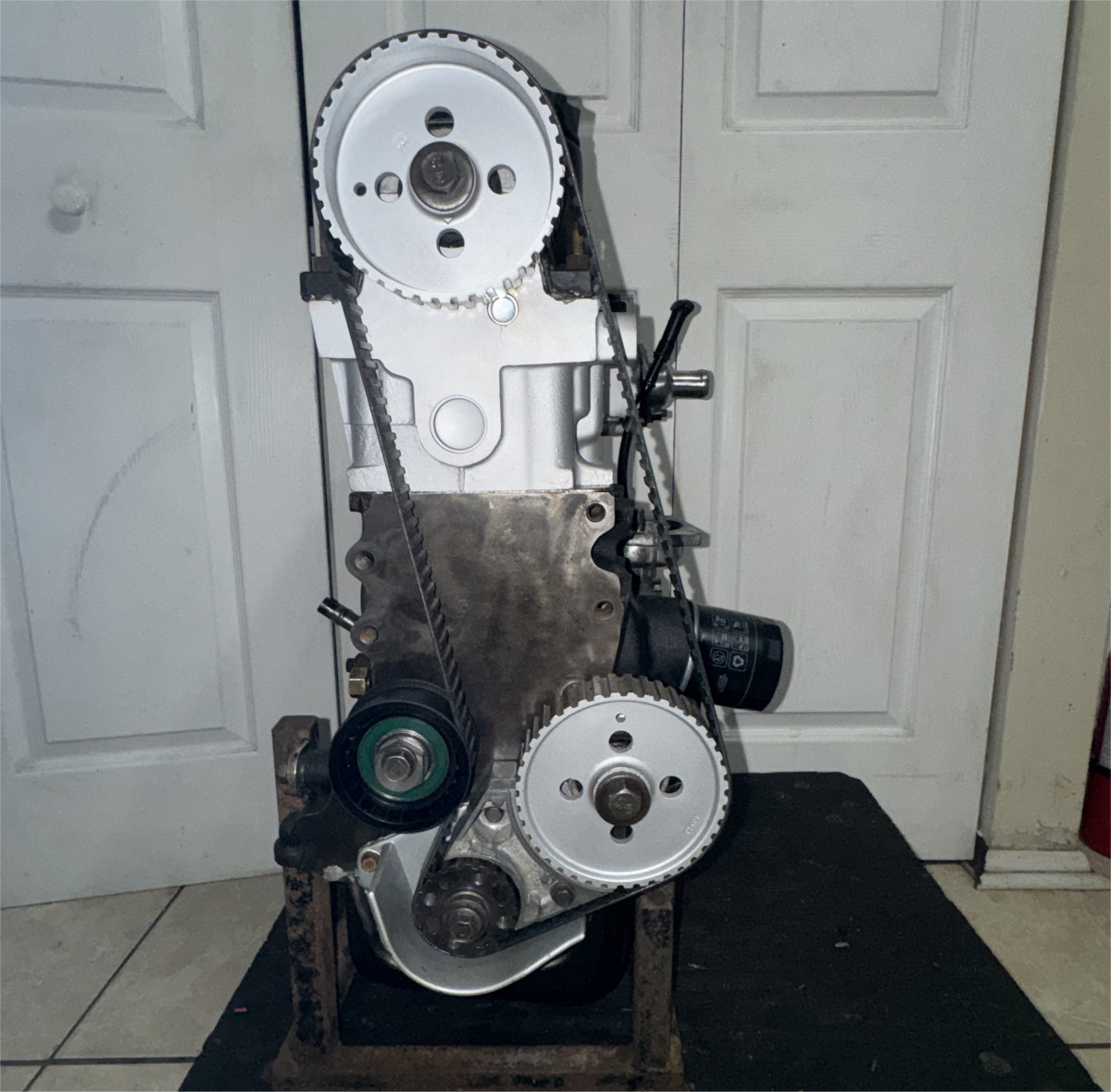

BLOCK: Complete genuine Dodge turbocharged 1984-1985, 6 bolt crankshaft NON-commonblock 2.2 engine. Good, used, low mileage, professionally rebuilt. 6 bolt Mopar crankshaft, factory Mahle cast pistons, standard bore, fresh rings and all bearings and seals. Stock 287 cylinder head w/turbo Dodge Parts upgrades.
- Chemically cleaned and check for cracks cylinder block
- New rod and main bearings
- Crankshaft turned to factory specifications
- All new brass or steel freeze plugs
- New front and rear cam seals
- Complete with intermediate shaft and all seal retainers
- New oil pump
- Oil pan, Early 2.2
- New intermediate shaft bearings
- New timing belt and tensioner
- OEM 4 bolt Crankshaft Sprocket
- Upgraded to 11mm head bolts (stock 84/85 is 10mm)
HEAD: Professionally rebuilt genuine Chrysler 287 cylinder head. 1 year warranty against cracking. All new valve train hardware: cam, intake & exhaust valves, lifters, slider rocker arms, valve stem seals, cam seals, 3 angle performance valve job with back cut valves for additional performance.
- Professional machine shop rebuilt cylinder head
- 3 angle valve job, with back cut valves
- Stock Size Intake & Exhaust Valves
- Stock Turbo Valve Springs
- Stock Intake/Exhaust Valve Locks/Keepers
- OEM Valve Spring Retainers
- OEM Slider Cam Followers
- New valve guides w/locks as needed
- OEM Turbo Slider Cam
- OEM Cam Sprocket
- Front and Rear Cam Seals
- Stock Lifters With Shims
- Turbo Dodge Parts Ultimate intake studs
- Turbo Dodge Parts Ultimate exhaust studs with copper clad flange nuts
- FelPro 11mm head bolts
- FelPro Valve Cover Gasket (1 piece or multi-piece design)
- FelPro PermaTorqe head gasket
- Refinished Turbo Valve Cover
- Full 1 Year Unlimited Mileage Warranty
CUSTOM ENGINE REFRESH KIT
As an option, the following items are suggested as being needed for a best practices more reliable engine installation and to avoid project delays or common break down issues after new engine is installed.
- Upper radiator hose
- Lower radiator hose
- 4 ft 3/8" heater hose
- Heater control valve
- Oxygen sensor for turbocharger swing valve
- Turbocharger braided stainless steel replacement oil and coolant lines
- 180*F thermostat
- Water Pump Housing to Block O-Ring
- Thermostat housing gasket (premium)
- Oil Filter (WiX)
- Air Filter (WIX)
- Fuel Filter
- Fuel hose supply, high pressure fuel injection
- Fuel hose return, high pressure fuel injection
- Fuel hose clamps (not worm style radiator hose clamps)
- Exhaust A-pipe to swing valve housing bolts and nuts
- Intake/Exhaust manifold gasket
- T1 log intake heat shield, ceramic fiber heat shield
- Water pump, Premium w/gasket
- RN12YC Champion copper turbo spark plugs
- Distributor Cap
- Distributor Rotor
- Spark Plug Wires (NGK 7mm premium, silicone)
*** ENGINE TO BE PICKED UP BY CUSTOMER AT OUR ATLANTA GEORGIA LOCATION ***
CUSTOMER TO PROVIDE LONG BLOCK CORE ENGINE, SHORT BLOCK & HEAD ONLY, NO MANIFOLDS, ACCESORIES, OR FLEXPLATE
