Product Description

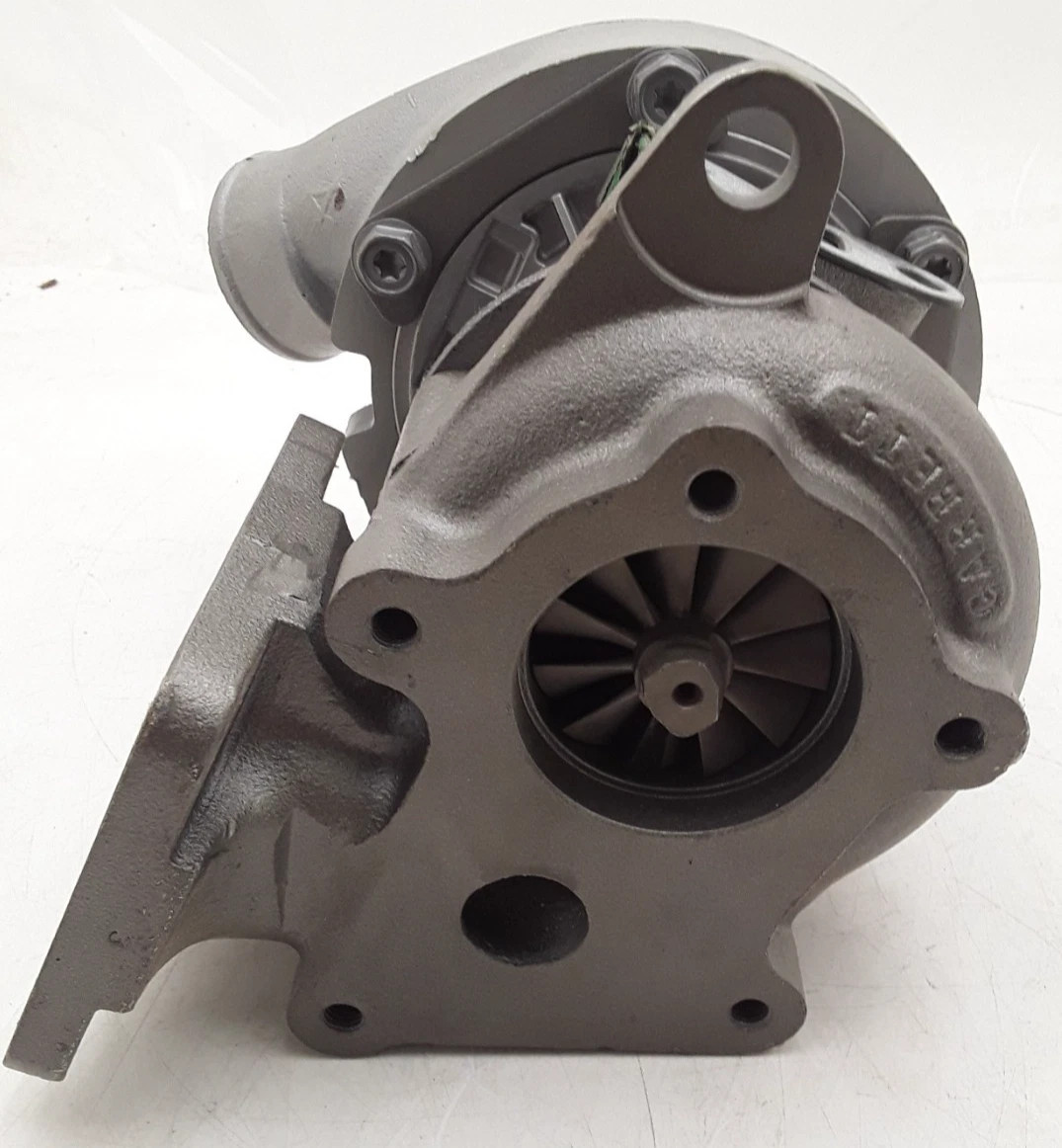

NOS Garrett T2 style turbocharger exclusively for the 1986-1989 turbo Dodge cars such as Daytona, Shadow, Spirit, GLHS Charger, GLHS Omni, etc. Original OEM equipment manufactured by Garrett with the unique Chrysler exhaust mounting flange bolt pattern.
This unit features the complete NOS turbocharger assembly and a reclaimed standard 2.25" swing valve and an optional set of stainless steel braided turbo oil and coolant lines.
FEATURES OF THIS TURBOCHARGER
- NO CORE REQUIRED
- Genuine Garrett Chrysler NOS Garrett Turbo 2/TII Turbocharger
- Standard 2.25" Swing Valve With EGR Port w/Removeable Cap (Good/Used)
- Easiest Installation, Unbolt Old Turbo Charger, Bolt On The New
- Brass Coolant Line Fittings Are Already Installed
- Turbo Oil Return Pipe Flange Gasket
- TU Stainless Steel Braided Oil & Coolant Supply And Return Lines (Optional)
- Note the small nick on the edge of the turbo inlet compressor housing flange
SPECS OF THIS NOS TURBO CHARGER
| Compressor housing A/R | .42 |
| Exhaust housing A/R | .48 |
| Compressor inducer | 42 mm |
| Compressor exducer | 60 mm |
| Exhaust turbine diameter | 48 mm |
 |
 |
 |
