Product Description

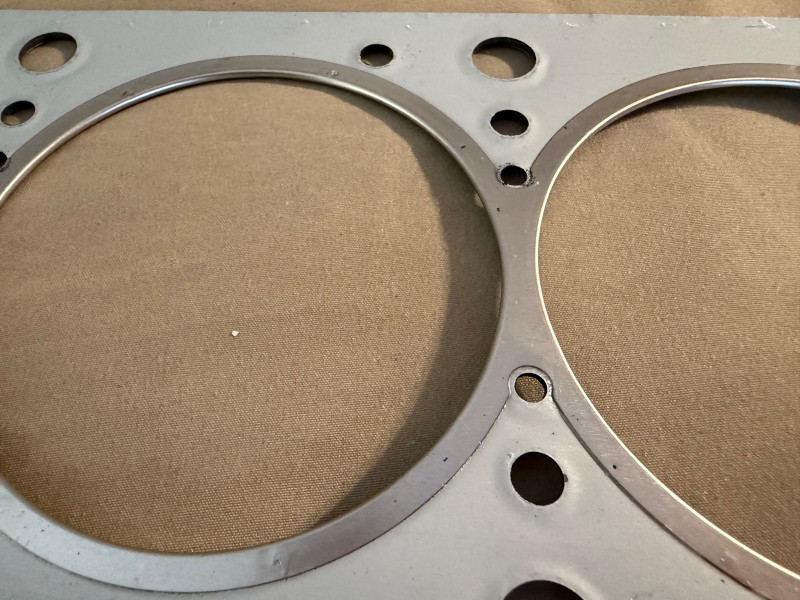

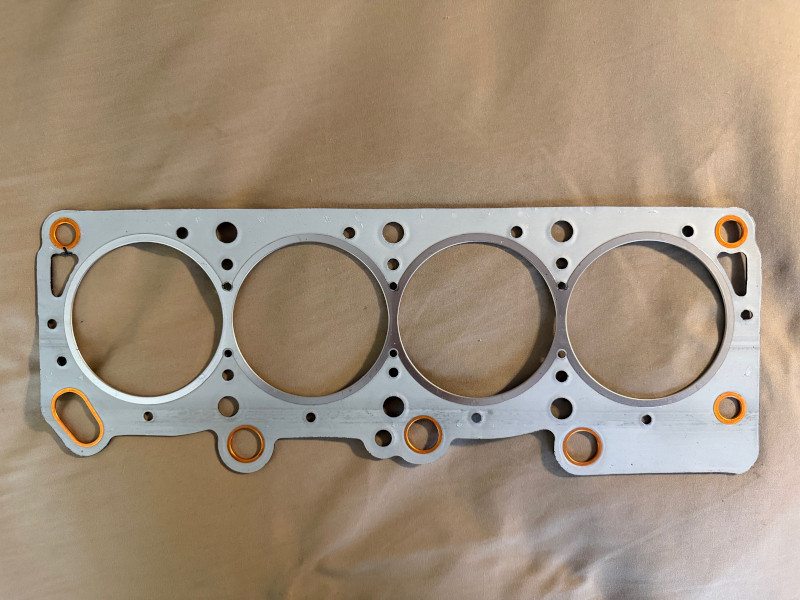

A very high-quality Fiber-Max cylinder head gasket designed specifically for high boost, turbo charged Chrysler, Dodge and Plymouth vehicles, featuring a durable Metalmix (composite/steel) construction. The gasket has a fiber mix core covered in metal on both sides, bonded together and then a special high temp, high strength silicone sealer is applied making for a superior and very durable seal. Engineered in Spain, this gasket has an 89.5 mm bore, 2 mm thickness, and is often used for 2.2L-2.5L engines. It is designed for high temperature and pressure resistance.
- Fiber-Max gaskets are covered in a high strength and high temp resistant silicone material for the best possible seal for cast iron engine blocks and aluminum cylinder heads
- More forgiving than all metal cometic gaskets that require both mating surfaces to be machined perfectly flat
- Incorporates a one-piece fire rings for all 4 cylinders

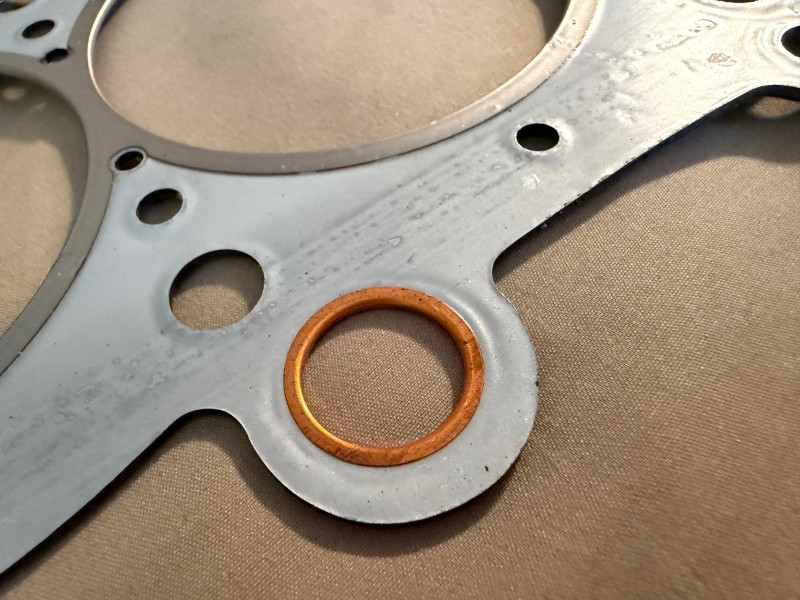

- Oil passage holes incorporate a full coverage copper sealing ring on both sides of the gasket
- Manufactured in Spain
Key Technical Specifications & Details:
- Product Line: METALMIX (composite/fiber/steel)
- Bore Diameter: 89.5 mm
- Thickness: 2 mm
- Length/Width: 418mm x 152mm
- Compatible OE References: Chrysler 5281064
- Required Component: Only in connection with head bolt set 10mm or 11mm
- Installation Procedure: 3Kpm, 6Kpm, 9Kpm, -90º+9Kpm, 90º
