Product Description
*** RESERVED FOR HUGO'S 1989 DODGE DAYTONA ***

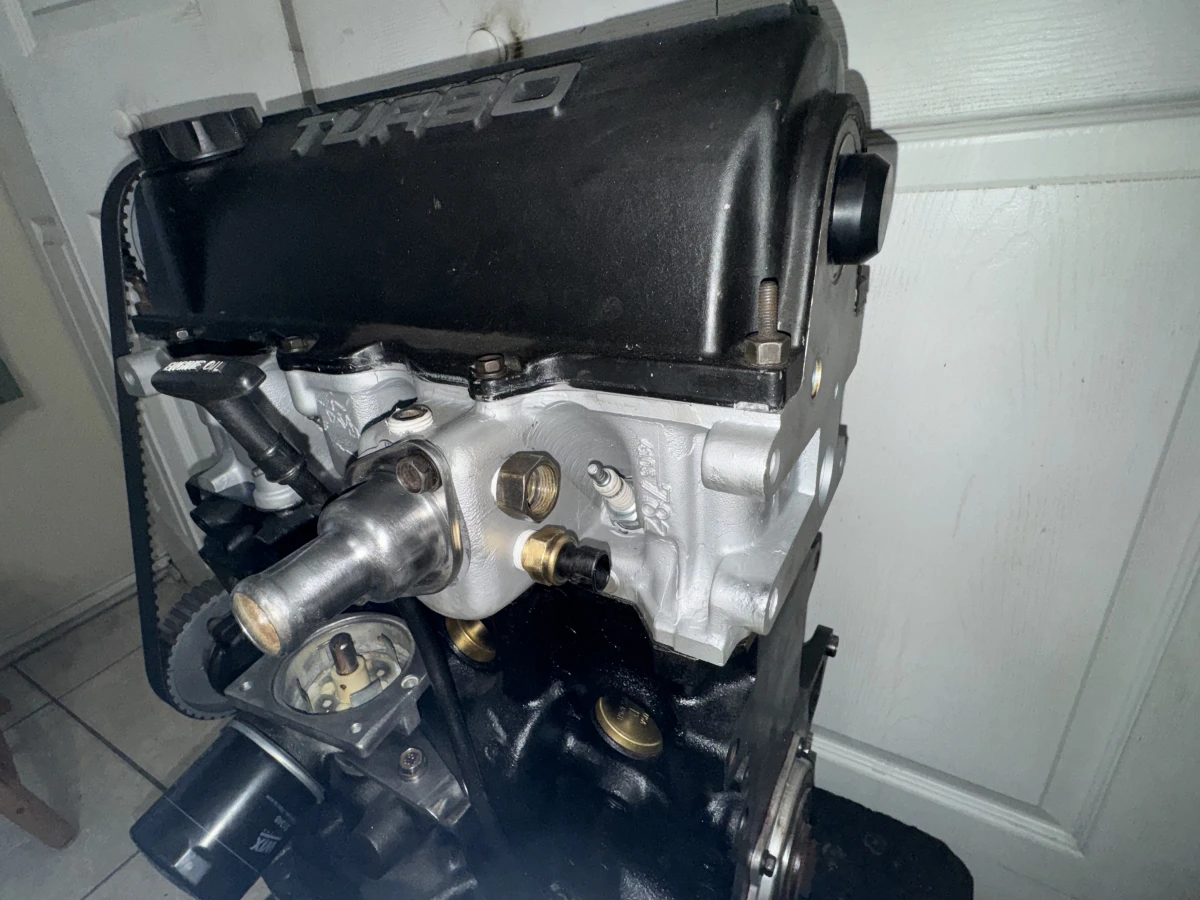

Fully assembled turbocharged 1989 dodge Daytona t1 common block engine, oil pan to valve cover complete with manifolds and Mitsubishi turbocharger.

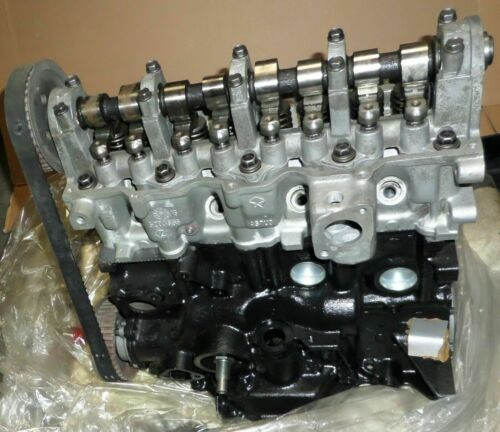

BLOCK: Complete genuine Dodge turbocharged Common block 2.5 T1 (Mitsubishi turbo) turbocharged engine. Good, used, low mileage, fully rebuilt. 8 bolt Mopar crankshaft, factory Mahle cast pistons, standard bore, fresh turbo rings and tri-metal turbo class bearings. Stock 782 cylinder head w/turbo standard Dodge Parts upgrades.
- Chemically cleaned and check for cracks cylinder block
- New tri-metal rod and main bearings
- Crankshaft turned to factory specifications
- All new steel freeze plugs
- New front and rear cam seals
- Complete with intermediate shaft and all seal retainers
- New oil pump
- Oil Pickup Tube
- Oil pan, 2.5 balance shaft version
- Dip Stick Tube w/Stick
- Crankshaft Timing Belt Cog
- Oil Filter

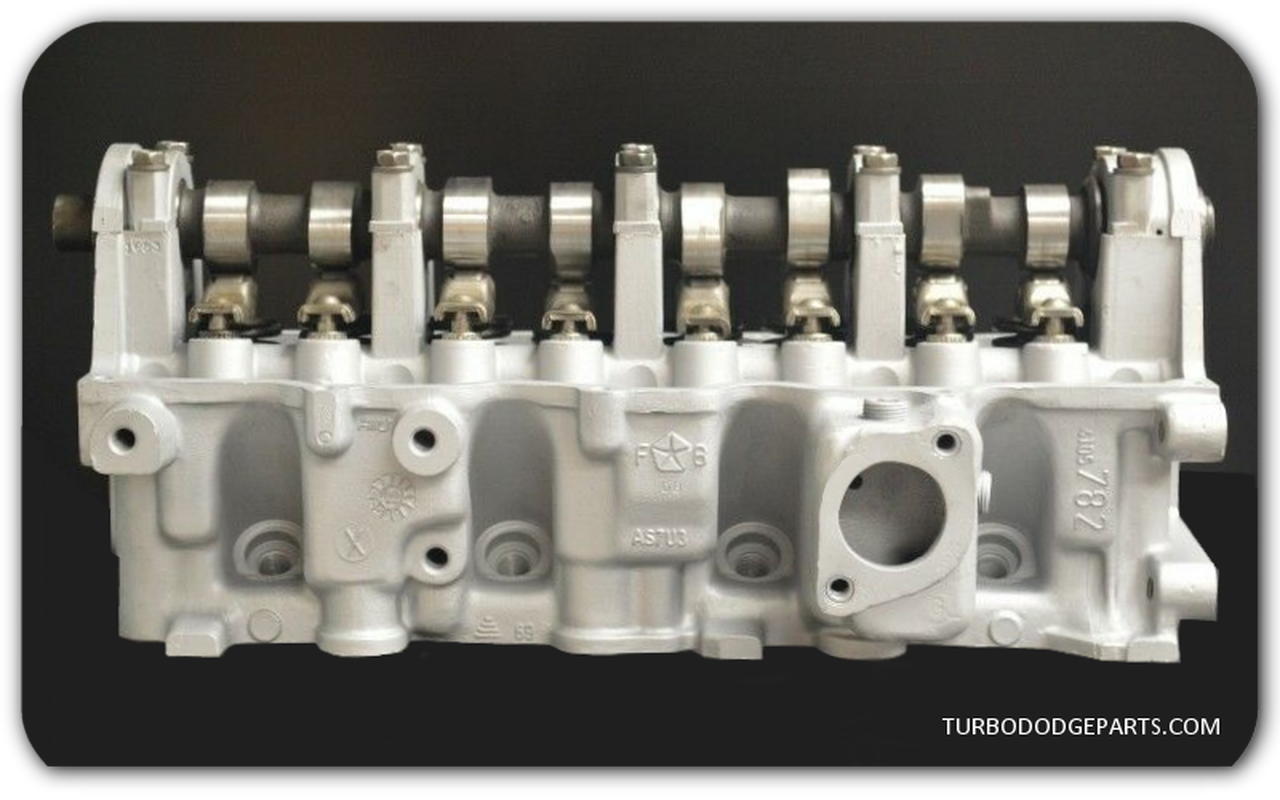

HEAD: Professionally rebuilt genuine Chrysler 782 cylinder head, fast burn. 1 year warranty against cracking. All new valve train hardware: cam, intake & exhaust valves, lifters, roller rocker arms, valve stem seals, cam seals, 3 angle performance valve job with backcut valves for additional performance.
- Professional machine shop rebuilt cylinder head
- 3 angle valve job, with backcut valves
- Stock Size Intake & Exhaust Valves
- Stock Turbo Valve Springs
- Stock Intake/Exhaust Valve Locks/Keepers
- OEM Valve Spring Retainers
- OEM Roller Cam Followers
- New valve guides w/locks as needed
- OEM 88 TBI Cam (for use in upgraded turbo engines)
- Front and Rear Cam Seals
- Stock Valve Lifters
- Viton Valve Stem Seals
- Turbo Dodge Parts Ultimate intake studs and copper clad flange nuts
- Turbo Dodge Parts Ultimate exhaust studs with copper clad flange nuts
- FelPro 11mm head bolts
- FelPro Valve Cover Gasket (1 piece or multi-piece design)
- FelPro PermaTorqe head gasket
- Timing Belt and Tensioner
- Camshaft Cog/Pulley
- Late Style "Turbo" Valve Cover w/Gasket
- 3 Way PCV Hose
- Champion RN12YC Spark Plugs (4)
- No cylinder head core required
- Full 1 Year Unlimited Mileage Warranty
MANIFOLD (INTAKE)
- Complete 1 piece intake manifold w/composite Gasket
- Factory Fuel Rail w/Factory Fuel Pressure Regulator
- (4) OEM Turbo Rated Fuel Injectors
- OEM Throttle Body With IAC Valve and TPS Sensor
- Fuel Rail Electrical Harness and Connector
- OEM Knock Sensor
- OEM Air Charge Temp Sensor
- Mounting Hardware (head to manifold)
EXHAUST MANIFOLD
- Factory Turbo Exhaust Manifold w/composite Gasket
- Mounting Hardware (head to manifold)
- Turbocharger Mounting Hardware
- 3/4 Wire O2 Sensor
- 'A' Pipe to Manifold Bolts, Nuts, Springs

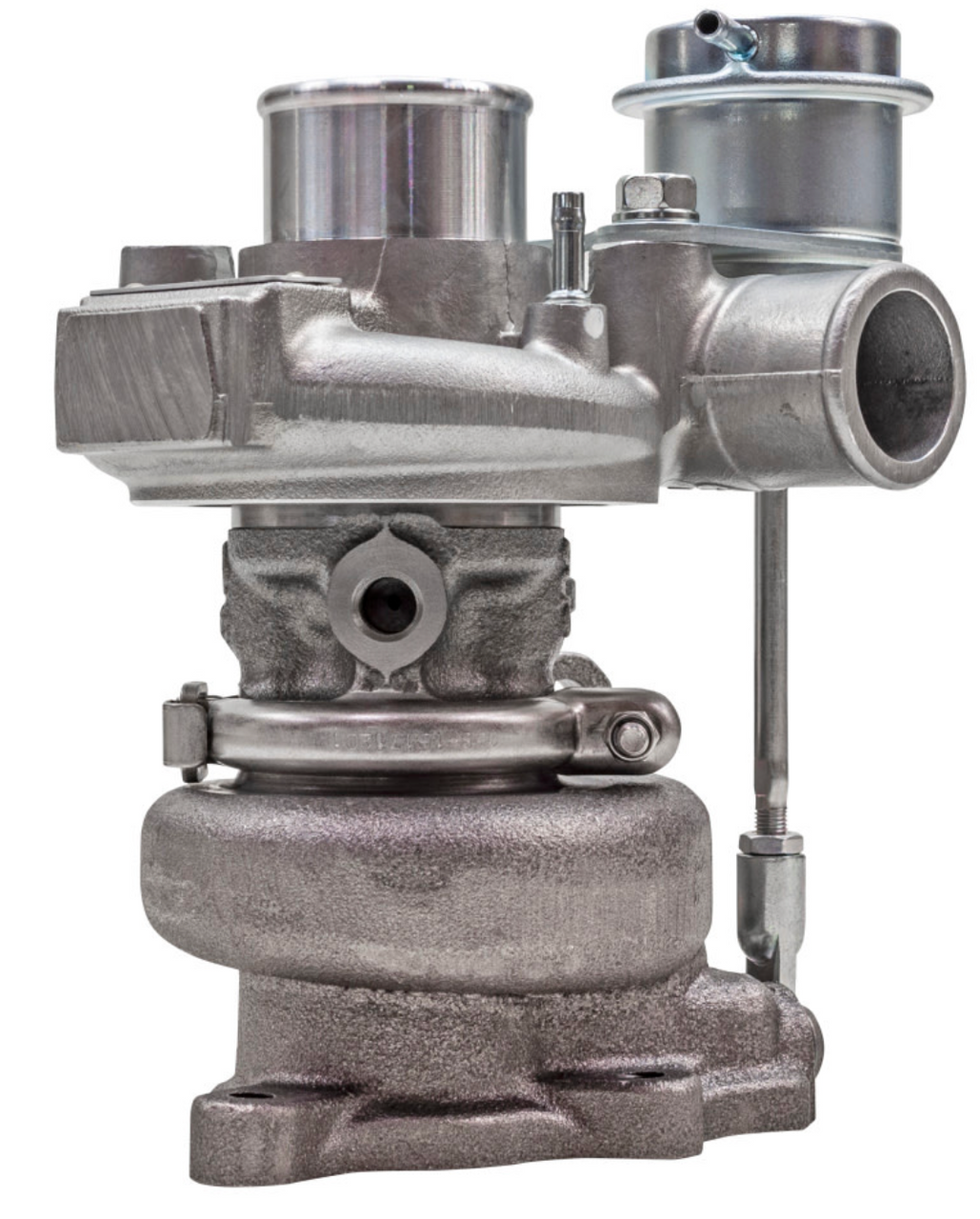

TURBOCHARGER
- Rebuilt Factory Mitsubishi turbocharger
- Replacement Oil Feed & Return Lines and Hoses w/Clamps
- Replacement Coolant Feed & Return Lines
- 1989 Style Mitsubishi Waste Gate Actuator
COOLING SYSTEM
- Upper Radiator Hose
- Lower Radiator Hose
- 195* Thermostat w/housing and Mounting Hardware
- 6 ft Cut To Fit Heater Hose
PERFORMANCE CALIBRATION (OPTIONAL)
- Custom Calibration for additional Boost, Fuel and Timing
- (Plug and Play, no programming, learning or additional hardware needed)
WHAT IS NOT INCLUDED (REUSE ORIGINAL)
- Turbocharger inlet/outlet hoses
- Air cleaner housing and bracket
- PCV Valve Cover to Air Cleaner Pipe
- Complete Vacuum/Boost Harness
- Any Fluids
- Engine Accessories (Alternator, AC Compressor, Power Steering, Mounting Brackets, Drive Belts)
- Engine Pulley(s) or Tensioners
- Distributor, cap, rotor, wires
***
A BEST PRACTICE, GOOD FAITH FIXED DELIVERY COST TO BE PAID UPON BUILD COMPLETION. SHIPPING COST WILL INCLUDE THE COST OF SHIPPING CRATE AND CARRIER QUOTED CARTAGE FEES. ADDITIONAL CARTAGE FEES THAT MAY INCLUDE LIFT GATE, LIMITED ACCESS, UNLOADING CHARGES MAY BE PAYABLE TO DRIVER OR CARRIER POST DELIVERY BY PURCHASER- MOST RELIABLE AND ECONOMICAL CARRIER WILL BE CHOSEN AND FINAL DECISION WILL BE THE RESPONSIBILITY OF THE PURCHASER. PURCHASER SHOULD EXPECT A DELIVERY COST OF $600-$1,000US. LOCAL PICKUP IN THE ATLANTA GA AREA IS AVAILABLE AT NO COST
***
